Simple Wiring diagram of ceiling fan

Simple Wiring diagram of ceiling fan


This is a simple illustrated circuit diagram of ceiling fan. To be noted that the wiring diagram is for AC 220V single phase line with single phase ceiling fan motor. Here a simple SPST switch is used to supply power or not to the fan motor and a Regulator is used to controlling the fan speed. Though it is very simple, but one thing to be noted that Switchand Regulator should be connected with the phase line of main power, not neutral.

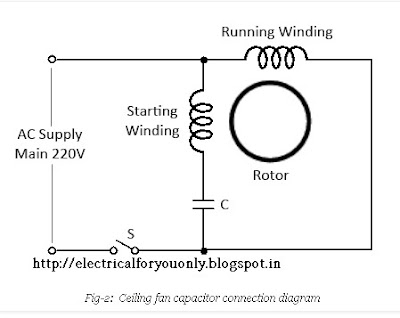

capacitor connection diagram of celing fan


electricalforyouonly

Ceiling fan has a “capacitor start motor” in its inside. AC single phase capacitor start motor has two winding; one is starting winding and another is running winding.

As it is a capacitor start-capacitor run type motor; there a capacitor is used in series with Starting Winding, It defines the direction of rotation. It is an electrolytic capacitor.
some time you may face these questions
  1. Why ceiling fan rotating in reverse?
  2. What makes a ceiling fan run backwards?
Two of this question sounds the same; the answer of the both question is “If capacitor is connected with running winding/main coil instead of starting winding/auxiliary coilthen the direction of rotation will changed. That’s mean if you want to change the direction of rotation of the fan, just connect the capacitor with other winding.
basics of electricals

Tube light connection

Tube Light Circuit" is about how to wiring fluorescent light and "how a Fluorescent Tube Light works". The wiring process of fluorescent tube lamp/light with Ballast, Starter is quite easy and simple. In most cases when we buy a fluorescent light it comes in a complete set with all wire connected, you can buy all the parts individually. And you can complete all connection of the fluorescent light/lamp with the help of this wiring circuit diagram.
